Without Hoper Mixer Machine

Product Details:

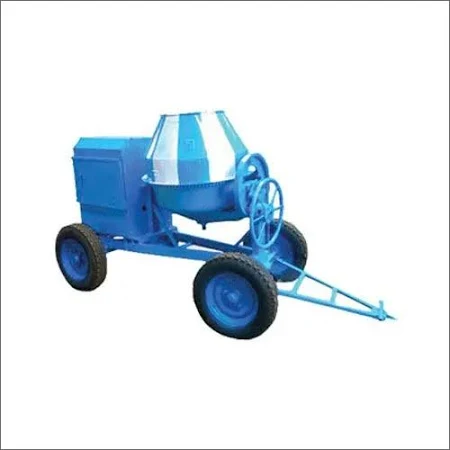

Without Hoper Mixer Machine

1. DELIVERY:Within a 3-4 Days from the date of confirm order.
2. PAYMENT:50% Advance With PO And 50% Before Dispatch.
3. TAXS:GST 18% Extra.
4. Validity :Fifteen Day From the Quotation.

Download Broucher:

WITHOUT-HOPER-MIXER-MACHINE.pdf

Description

Manufacturer of a wide range of products which include cement mixer.

As a prominent company, we are occupied in manufacturing and supplying a wide assortment of  Without Hoper Mixer Machine. This machine is designed by the deft professionals at our well maintained production unit using optimum grade components. The offered machine is made available in various technical specifications and is highly acclaimed for its indispensable features. Our customers can purchase this machine from us at reasonable prices.

Additional information

Model

SIMCO 100 – CI

Capacity

Unmixed : 10 cft. Mixed: 7 cft

Volume

450 Litres

Prime Mover

6.5 HP air cooled HSD diesel engine (Star Marshal)

Hopper

Without hopper, hand feed

Drum Speed

18 rpm

Wheels

500×19 pneumatic tyre with Heavuy hub & bearing system, and pressed steel
plate rims – 4 No’s

Handi Yoke

100x100x5 mm Square Pipe (Asian Make), Bearing System

Chassis

Heavy Duty M.S. 100 x 50 x 5 mm Channel chassis

Drive Chain

V belt Pully

Mixing Drum and Blades

Bottom CI Casting Drum Heavy Duty, Upper M S Cone 3 mm

Drum Type

Tilting

Weight

850 kg Approx

Engine Cabin

16 G (1.6 mm) Thick

Dimensions

L 2470 x W 1270 x H 1900 mm
